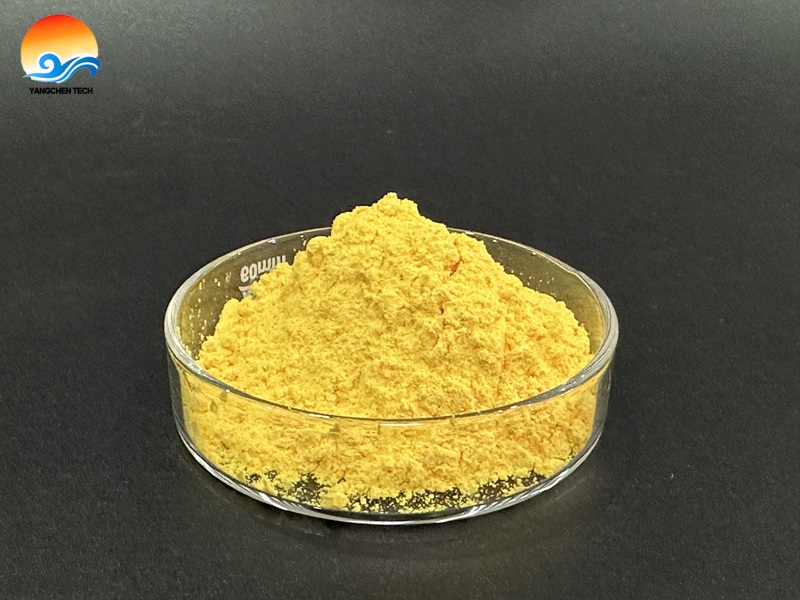

Polyimide Resin powder manufacturer

Polyimide Resin powder PI-100 manufacturer
Polyimide Resin powder PI-100 manufacturer
Polyimide Resin powder PI-100 manufacturer

Polyimide Resin powder manufacturer

Polyimide resin manufactured by Yangchen Tech is one of the advanced composite matrix resin varieties, widely used in high-performance, high-temperature-resistant resin-based composites, can replace the Kerimid 601 polyimide resin. It is mainly used as bonding agent for grinding wheels and friction materials (diamond, cubic boron nitride) and matrix resin for high-temperature-resistant molded parts, and it is also suitable for the preparation of high (low) temperature-resistant solid self-lubricating mechanical parts. Welcome Inquiry!


  • Name :

    Polyimide resin
  • Abbreviation :

    PI-100
  • Appearance :

    Yellow powder
  • Lead Time :

    5-7 Days
  • Shipping port :

    Shanghai

Polyimide resin manufactured by Yangchen TECH has the advantages of high glass transition temperature, excellent heat resistance and mechanical characteristics, excellent electrical characteristics, good storage stability. PI-100 is hot compression molding, can also be dissolved with organic solvents (DMF, etc.) to prepare fiber (glass fiber, carbon fiber, etc.) reinforced prepreg. After dissolving and mixing with different epoxy resins, a variety of heat-resistant grade new epoxy resin system can be prepared to meet the requirements of different composite materials and electrical insulation materials on the heat-resistant characteristics of epoxy resins.

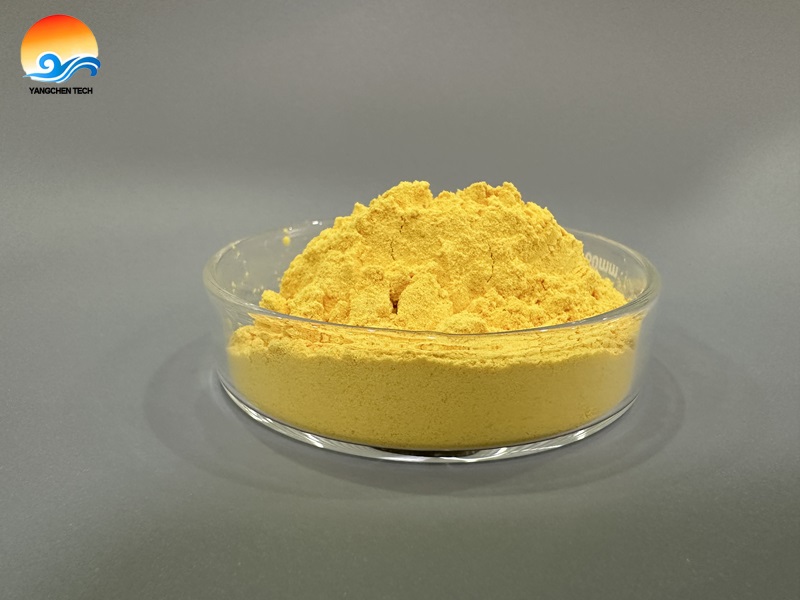

Polyimide Resin powder



Technical Indicator

Appearance Melting point Partical Size Flowability Gel time
Yellow powder 80-110℃ 200-1000 mesh 8-20mm 100-600 S

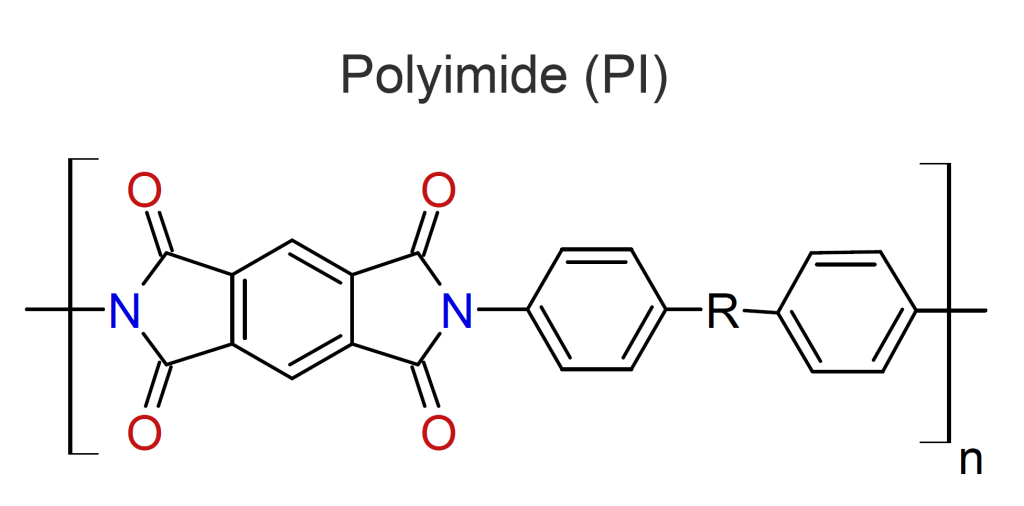

Structure formula of Polyimide resin

Application

(1) PI-100 manufactured by Yangchen Tech is mainly used as a bonding agent for grinding wheels (diamond, cubic boron nitride) and friction materials,brake pads, as well as a matrix resin for high-temperature molded parts, and it has excellent heat resistance and mechanical properties.

(2) Polyimide resin produced by Yangchen Tech can be used to manufacture high (low) temperature resistant solid self-lubricating mechanical parts.

(3) PI-100 manufatured by Yangchen Tech is dissolved in organic solvents (DMF, etc.) to become a resin liquid with a certain solid content, which can be used to manufacture fiber (glass fiber, carbon fiber, etc.) reinforced prepreg, and it is widely used in the field of high-temperature-resistant matrix resin composites.



Applications of Polyimide resin



Suggestions



  • Polyimide resin is mixed with various powders and molded under certain conditions;
  • Dissolved in an organic solvent (DMF, etc.) into a resin liquid with a certain solid content, it can be used in the manufacture of prepregs reinforced with fibers (glass fibers, carbon fibers, etc.) and used in laminates.
  • It is dissolved in organic solvents (DMF, etc.) to become a resin liquid with a certain solid content, and then mixed with different ratios of epoxy resin as needed to prepare new epoxy resin systems of various heat-resistant grades, which can satisfy the requirements of composites and electric insulating materials for the heat resistance of epoxy resin.
  • Suggestions on superabrasive pressing process.





Manufacturing Workshop of Yangchen Tech



Why choose Yangchen Tech?



1.We are a competent factory manufacturing Polyimide resin in China, with an annual production capacity of 3000 tons.

2. With over 30 years of industry experience, our expertise shines through in our products.

3. We have served more than 100 customers from all over the world.

4.Our R&D team provides technical solutions and technical support to meet your specific needs.



FAQ



Q1: Is Yangchen Tech a manufacturer or trading company?

A: We are a manufacturer in China, with an annual production capacity of 3000 tons.



Q2: Does Yangchen Tech provide free samples?

A: We are very glad to provide you with free samples for your testing .



Q3: How to pay for the order?

A: We accept payment by T/T, L/C.



Q4: Does Yangchen Tech provide technical support for customers?

A: Yes, we do. Each customer's application is unique in some ways. Our customized services are designed to better meet your needs. Based on our 30+ years of experience in the rubber additives industry, we can provide technical support services based on your specific needs.
