In tire manufacturing and industrial rubber goods, the adhesion strength between rubber and tire cord — whether polyester, nylon, or rayon — is a critical determinant of product safety, durability, and service life. Tire cords serve as the reinforcing skeleton, providing strength and resistance to deformation. The adhesion interface between rubber and cord, however, is often the weakest link under demanding conditions such as dynamic loading and high-temperature aging.

Traditional adhesion systems rely heavily on "resorcinol-formaldehyde-silica" (RF) systems or RFL dipping processes, which achieve bonding through physical adsorption or limited chemical coupling. Under high-temperature vulcanization, prolonged aging, or dynamic stress, these systems frequently suffer from rapid adhesion decay, leading to quality issues such as shoulder separation and delamination in tires.

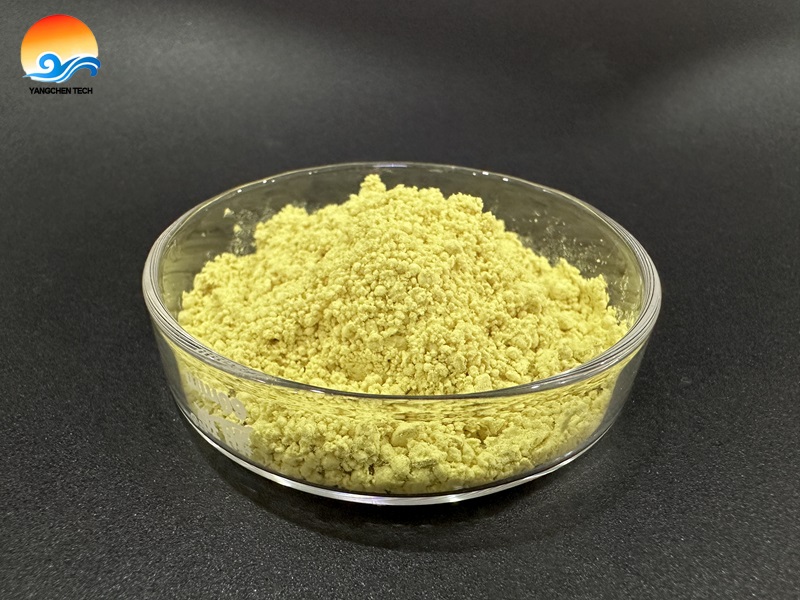

HA-8 (N,N'-m-phenylene dimaleimide, also known as PDM or HVA-2) offers a reliable technical solution to these rubber-to-cord adhesion challenges.

1. Mechanism of Action: From Physical Adsorption to Chemical Bonding

HA-8 (chemical name: N,N'-m-phenylene bismaleimide, CAS: 3006-93-7) features two highly reactive maleimide groups in its molecular structure. This unique dual-functional structure endows HA-8 with multiple roles in rubber processing: it can function as a vulcanizing agent, a co-vulcanizing agent in peroxide systems, a scorch retarder, and a tackifier.

At the rubber-to-cord adhesion interface, HA-8 acts as a "molecular bridge." One maleimide group reacts with rubber molecular chains through cross-linking, while the other reacts with polar groups on the cord fiber surface, forming strong chemical bonds. This molecular bridge mechanism transforms rubber-to-cord bonding from physical adsorption into durable chemical bonding, fundamentally enhancing the stability and longevity of the adhesion interface.

In natural rubber, HA-8 combined with sulfur prevents reversion, improves heat resistance, reduces heat generation, and enhances both adhesion to tire cord and vulcanized rubber modulus.

2. Key Applications in Tires and Rubber Products

2.1 Tire Shoulder Compounds and Breaker Layers

In tire shoulder compounds and breaker layers, adhesion between rubber and cord directly impacts resistance to shoulder separation. The addition of HA-8 significantly improves adhesion strength between compound and tire cord, effectively addressing shoulder separation issues in bias-ply truck tires. Industry studies confirm that HA-8 applied in shoulder compounds and breaker layers eliminates reversion during high-temperature vulcanization, maintaining stable adhesion interfaces throughout long-term service.

2.2 Tire Ply and Belt Layers

In tire ply and belt layers, rubber-to-cord adhesion with polyester, nylon, and other cords is a key factor determining overall tire performance. HA-8 enhances the adhesive strength between rubber, tire cord, and metal, while improving vulcanized rubber modulus — ensuring structural integrity under high-speed and heavy-load conditions.

2.3 Large-Scale Natural Rubber Thick Products

For large-scale natural rubber thick products (such as large rubber rollers and engineering rubber goods), uneven vulcanization between interior and exterior during curing is a common challenge. HA-8 application prevents scorch during processing while improving overall adhesion performance in thick-section products.

2.4 Specialty Rubbers and Rubber-Plastic Blends

HA-8 is not limited to natural rubber. In specialty rubbers — including CR, CSM, SBR, NBR, IIR, BIIR, ACM, VMQ, and rubber-plastic blend systems — HA-8 serves as an auxiliary vulcanizer that significantly improves crosslinking performance, enhances heat resistance, reduces compression set, and increases adhesion strength.

3. Recommended Dosages

HA-8 dosage should be adjusted based on specific application requirements:

For applications demanding high adhesion strength (such as tire shoulder compounds and breaker layers), dosages of 3–5 phr are recommended to achieve optimal bonding performance.

4. Key Advantages of HA-8

Compared to traditional adhesion systems, HA-8 offers the following distinct advantages in rubber-to-cord adhesion applications:

Additionally, HA-8 is a sulfur-free vulcanizing agent suitable for cable rubber applications, where it can replace sulfur-containing systems to eliminate copper sulfide contamination and blackening of copper conductors.

Rubber-to-cord adhesion strength is one of the most critical factors determining tire and rubber product quality and service life. HA-8 (N,N'-m-phenylene bismaleimide/PDM/HVA-2), with its unique bismaleimide dual-functional structure, establishes a robust "molecular bridge" at the rubber-to-cord interface — transforming physical adsorption into durable chemical bonding and fundamentally resolving adhesion failures under high-temperature and dynamic conditions.

Whether in tire shoulder compounds and breaker layers for truck tires, or in specialty rubber and rubber-plastic blend systems, HA-8 consistently demonstrates exceptional adhesion-promoting effects and comprehensive performance improvements. For formulation engineers seeking high-performance adhesion solutions, HA-8 is undoubtedly a key additive worthy of in-depth evaluation and application.

Shaanxi Yangchen New Material Technology Co., Ltd. (www.yangchentech.com) is a professional manufacturer of high-quality HA-8 (N,N'-m-phenylene bismaleimide/PDM/HVA-2). For technical data sheets and sample inquiries, please contact us today.
